Description

CBD preheating battery 3 speed vv CBD battery pen:

Product parameters details:

Size: 145mm X 13mm

Capacity: 380mah

Net weight: 32g/set

Load: more than 1.5 ω resistance

Static current: <5uA

interface: 510 thread interface, universal with all 510 thread interface atomizers.

Preheating mode: press the button twice consecutively within 2 seconds to enter the preheating mode, and the cycle running lamp will stop automatically for 15 seconds, or press the button to stop the preheating in the preheating state

Press 3 times continuously within 2 seconds to enter the voltage regulating function, first gear: green 2.4V, second gear: blue 3.2V, third gear: red 4.0V

On/off operation: continuously press 5 times on/off within 2 seconds.

Inhalation mode: long press the button to inhale.

Working mode: the MOS tube stops protection automatically after 10 seconds of continuous operation.

Charging method: Charge in the bottom Micro USB.

Short circuit protection: output load short circuit, red, green and blue LED flashing 3 times.

Timeout protection: inhalation timeout, current LED flashing 5 times.

Low voltage protection: the battery voltage is lower than 2.3V under load and 2.8V under no load. The current LED flashes 10 times without output.

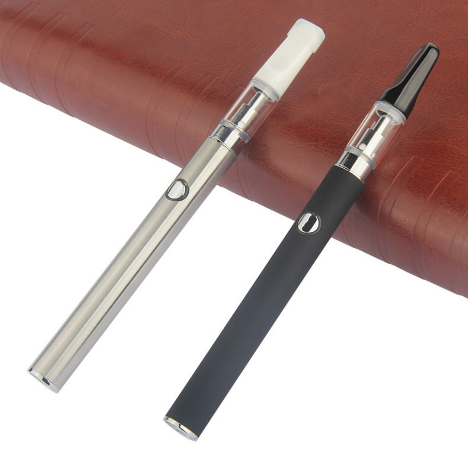

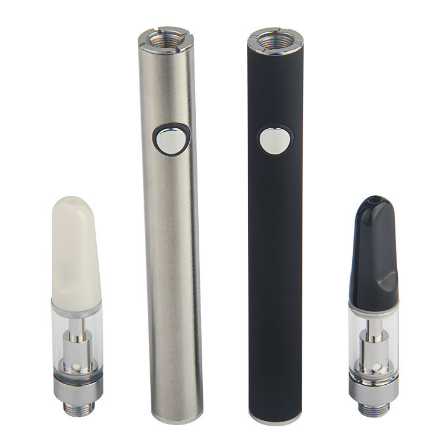

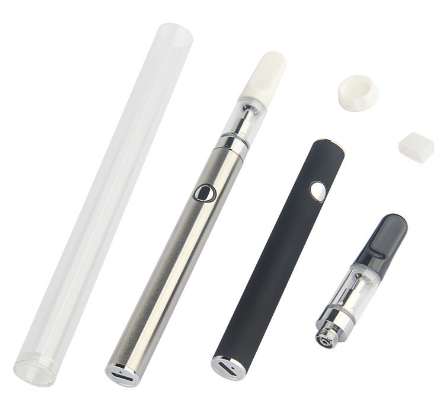

PIC:







Product customization Instructions:

Support OEM custom LOGO ， can support OEM packaging customization (MOQ:2000pcs, but OEM package materials for additional costs to be determined), pls contact us for more details.thank you for your support and cooperation!
