Description

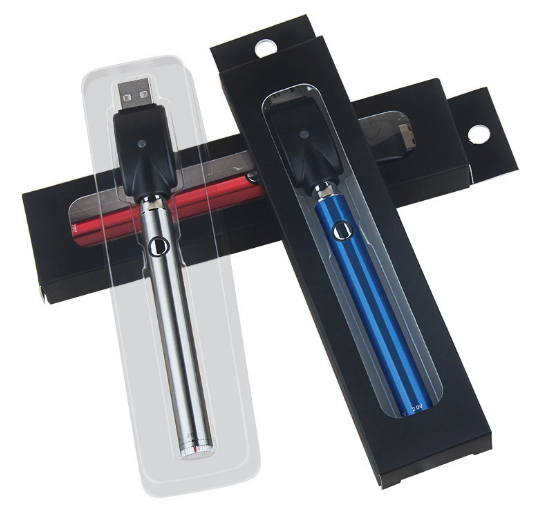

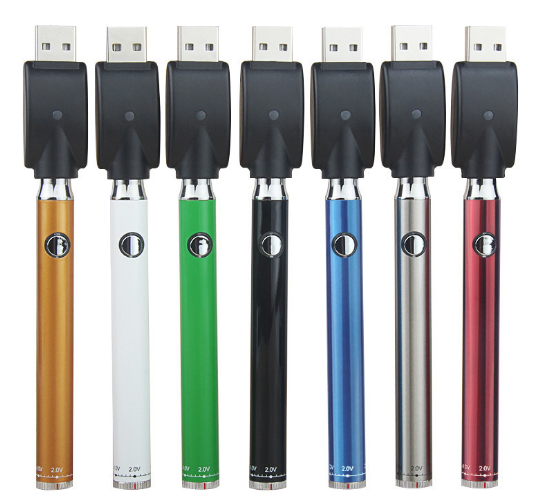

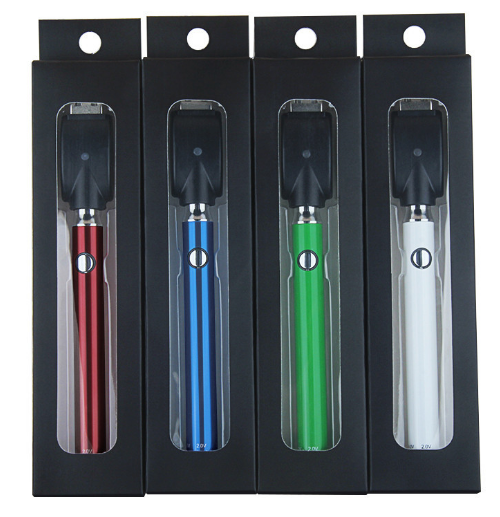

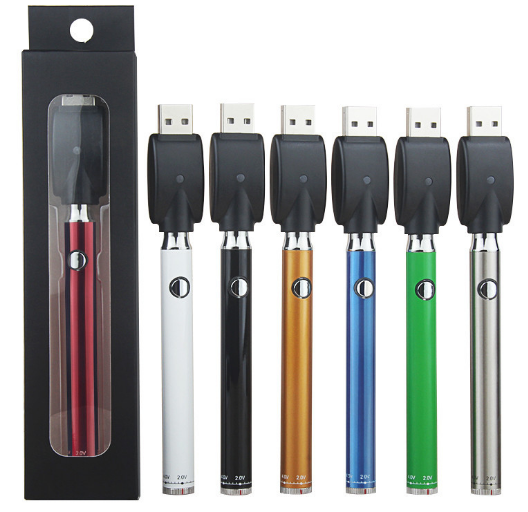

CBD twist preheat battery cbd vape battery:

Product parameters details:

Size :139mm X 40mm

Capacity: 350mah

Net weight: 50g/set

Load: more than 1.5 ω resistance

Static current: <5uA

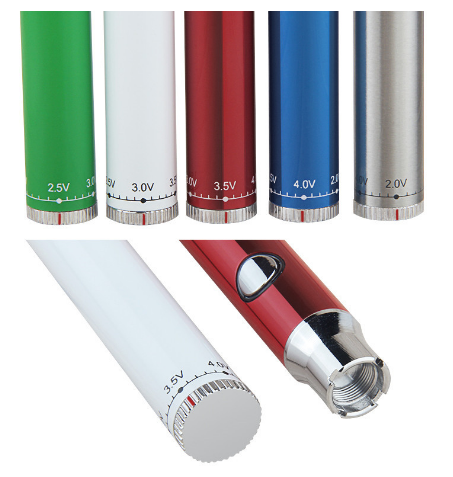

Voltage regulation: 2.0V-2.5V-3.0V-3.5V-4.0V

 interface: 510 thread interface, universal with all 510 thread interface atomizers

Preheating mode: press the button twice in 2 seconds to enter the preheating mode, and the cycle running lamp will stop automatically for 15 seconds, or press the button to stop preheating in the preheating state

Press 3 times continuously within 2 seconds to enter the voltage regulating function, first gear: green 2.5V, second gear: blue 3.0V, third gear: red 4.0V

On/off operation: continuously press 5 times on/off within 2 seconds

Inhalation mode: long press the button to inhale

Working mode: the MOS tube stops protection automatically after 10 seconds of continuous operation.

Charging method: charge at the head 510 thread interface

Short circuit protection: output load short circuit, red, green and blue LED flashing 3 times.

Timeout protection: inhalation timeout, current LED flashing 5 times.

Low voltage protection: the battery voltage is lower than 2.0V under load and 2.5V under no-load. The current LED flashes 10 times without output.

PIC:













Product customization Instructions:

Support OEM custom LOGO ， can support OEM packaging customization (MOQ:2000pcs, but OEM package materials for additional costs to be determined), pls contact us for more details.thank you for your support and cooperation!
